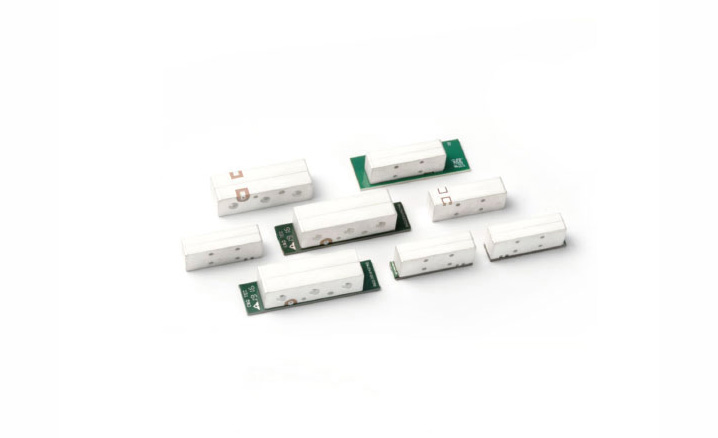

Dielectric waveguide filter
Product features:
characteristic:High power, low loss, small size, small temperature drift, high rectangularity, good remote suppression, frequency range: 700MHz~1 5GHz
Application:Various communication base stations, wireless CPE, Internet of Everything
Specification and model
center frequency
(GHz)
bandwidth
(MHz)
Insertion loss
(dB max)
echo
(dB min)
power
(W)
inhibition
(dB min)
size
(mm)
CDWF5R312A
1.975
90
1.5
16
2
35@1660~1780MHz
40*30*8.3
35@1850~1915MHz
35@3300~3700MHz
CDWF4R311A
2.355
10
3.0
15
2
38@1695~1780MHz
40*30*7.3
38@2496~2690MHz
38@3300~3700MHz
CDWF9R236A
2.595
160
1.3
17
20
65@0.3~2300MHz
50.75*20*6.5
54@2740~3300MHz
61@3300~5000MHz
CDWF6R283A
2.35
200
1.5
17
4
35dB@2100-2250MHz
35dB@2450-2700MHz51.5*21.3*9.2
CDWF6R096A
3.5
200
1.3
17
8
62@0~2025MHz
27*7*11
60@4400~5000MHz
55@5150~5350MHz
CDWF6R259A
3.5
200
0.8
17
20
65@0~2690MHz
32*19.4*6.8
50@3700~4400MHz
60@4400~5000MHz
CDWF6R330A
3.525
350
1.5
16
10
50@10~2690MHz
26*19.5*6.2
35@2690~3100MHz
50@7100~7400MHz
40@10650~11100MHz
CDWF6R331A
3.55
500
1.2
16
10
50@10~2690MHz
26*19.5*6.2
35@2690~3100MHz
50@6600~7600MHz
40@9900~11400MHz
CDWF6R175B
3.65
100
1.3
18
8
70@0~2170MHz
39*14*14
70@2500~2692MHz
55@4400~5925MHz
30@5925~7400MHz
CDWF9R319A
3.6
400
1.05
16
8
71@DC~2690MHz
82*71*8.0
65@2690~2775MHz
76@4400~5000MHz
40@5000~11400MHz
CDWF10R217A
3.61
380
1.4
16
8
71@DC~2690MHz
90*113.5*8.0
65@2690~2775MHz
76@4400~5000MHz
40@5000~12750MHz
CDWF10R320A
3.61
380
1.35
16
8
71@DC~2690MHz
82*71*8.0
65@2690~2775MHz
76@4400~5000MHz
40@8000~11400MHz
CDWF6R323A
3.702
280
1.0
16
10
50@10~2690MHz
26*19.5*6.2
35@2690~3550MHz
50@7100~7960MHz
40@10650~11940MHz
CDWF7R267A
3.84
280
1.5
17
10
65@9KHz~3300MHz
45*23.5*6.7
30@3300~3640MHz
50@4090~4400MHz
60@6500~9000MHz
CDWF7R327A
3.84
280
1.4
15
10
60@0~3300MHz
35*18*6.9
50@4090~4400MHz
60@4400~6500MHz
CDWF6R110A
4.9
200
1.4
17
8
65@0-2700MHz
35*10*11.5
65@3300~4200MHz
50@5850~6000MHz
CDWF6R348A
4.9
200
2.0
14
/
55dB@10-4700MHz
55dB@5.1-12GHz38*25.5*7.9
CDWF6R355A
5.55
500
1.0
14
2
30dBc@f0±500MHz外
50dBc@f0±3GHz-4GHz16.3*14.5*3.9
CDWF6R356A
6.55
500
1.0
14
2
30dBc@f0±500MHz外
50dBc@f0±3GHz-4GHz16.3*14.5*3.9
CDWF4R351A
7.35
400
2.0
17
1
40@1000~6000MHz
21*9.5*4.95
40@8350~9500MHz
35@9500~14000MHz
CDWF6R357A
7.55
500
1.0
14
2
30dBc@f0±500MHz外 50dBc@f0±3GHz-4GHz
16.3*14.5*3.5
CDWF6R358A
8.55
500
1.0
14
2
30dBc@f0±500MHz外
50dBc@f0±3GHz-4GHz16.3*14.5*3.5
CDWF6R359A
9.55
500
1.0
14
2
30dBc@f0±500MHz外
50dBc@f0±3GHz-4GHz13*10.5*3.3
CDWF6R360A
10.55
500
1.0
14
2
30dBc@f0±500MHz外 50dBc@f0±3GHz-4GHz
13*10.5*3.3
CDWF6R361A
11.55
500
1.0
14
2
30dBc@f0±500MHz外 50dBc@f0±3GHz-4GHz
13*10.5*3.3
CDWF4R369A
11.725
2050
0.5
15
2
30dBc@13.75-14.75GHz
10.5*10.5*2.9
CDWF6R362A
12.55
500
1
14
2
50dBc@8.55-9.55GHz
50dBc@15.55-16.55GHz13*10.5*3.3
CDWF4R370A
14.25
1000
0.5
15
2
30dBc@10.7-12.75GHz
10.5*10.5*2.9
CDWF4R310A
15.5
2000
1
15
2
30@14GHz
6.2*5.4*2.0
30@17GHz
CDWD8R366A
5.195
209
1.2
17
45dB@5450-5700MHz
204.5*104*17.3
5.575
250
1.2
17
45dB@5091-5300MHz
-
-
Note: The data for reference only, design it as customer’s request.
