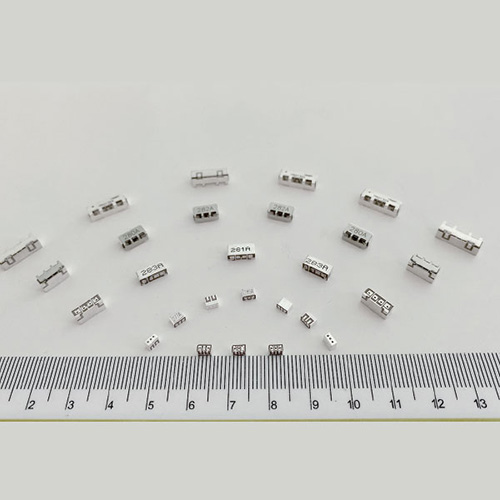

Wi Fi 6/6E module application
Specification and model (click the model to view the specification)
center frequency
(MHz)
bandwidth
(MHz)
Insertion loss
(dB max)
wave
(dB max.)
Return loss
(dB min.)
inhibition
(dB min.)
size
(mm)
5250.0
160
3.0
1.2
12
50@5490~5835MHz
8.2*5.3*3.3
5250.0
160
2.3
1.2
12
40@5490~5835MHz
8.2*4*3
5235.0
180
2.5
1.3
10
50@5490~5850MHz
8.6*3.8*2.9
5240.0
200
1.5
1.0
10
30 @ 2400~2700MHz
3.6*2.8*1.85
5245.0
190
3.0
1.2
10
30 @ 2400~2500MHz
3.6*2.8*1.85
25 @ 5480~5550MHz
30 @ 5550~5900MHz
5502.5
665
2.8
2.3
10
50 @5935~6200MHz
9.05*5*3.8
50 @6200~7125MHz
5502.5
665
2.5
2.3
10
45 @5935~6200MHz
12.8*4.4*3.8
50 @6200~7125MHz
5662.5
345
3.0
1.5
12
50 @5170~5330MHz
8.2*5*3.3
5662.5
345
2.3
1.0
12
40 @5170~5330MHz
8.2*3.7*3
5665.0
370
3.0
1.0
10
30 @ 2400~2500MHz
3.6*2.6*1.85
25 @5150~5340MHz
5670.0
380
1.5
1.0
10
25 @2400~2700MHz
3.6*2.6*1.85
21 @5140~5340MHz
5670.0
360
2.5
1.3
10
50 @5150~5330MHz
8.6*3.45*2.9
6530.0
1190
2.8
2.3
10
50 @5170~5490MHz
9.05*4.9*3.8
50 @5490~5835MHz
6530.0
1190
3.0
2.3
10
50 @5170~5490MHz
12.8*4.4*3.8
45 @5490~5835MHz
5492.5
685
1.5
1.5
13
48 @5925~5990MHz
8.8*4.75*2.35
6525.0
1200
2.3
1.8
11
48 @ 5640~5835MHz
9.36*3.63*2.35
5442.5
585
1.5
1.5
12
55 @5925~7125 MHz
8.8*4.75*2.35
6450.0
1050
2.5
1.5
11
57 @ 5150~5725 MHz
9.36*3.63*2.35
-
-
Note: The data for reference only, design it as customer’s request.
